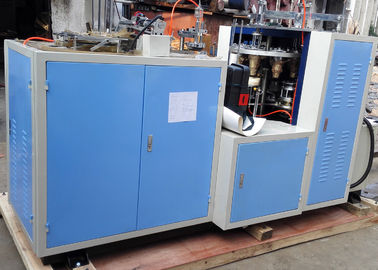

9 Oz Coffee Automatic Paper Cup Machine

9 Oz Coffee Automatic Paper Cup Machine

MOQ: 1 Set
Price: Negotiate
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
× 大图
quality Automatic Paper Cup Machine factory
Automatic Paper Cup Machine
Created with Pixso. > >

9 Oz Coffee Automatic Paper Cup Machine

  • 9 Oz Coffee Automatic Paper Cup Machine
  • 9 Oz Coffee Automatic Paper Cup Machine
9 Oz Coffee Automatic Paper Cup Machine
MOQ: 1 Set
Price: Negotiate
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
× 大图
Detail Information
Gross Weight:
1600 KGS
Speed:
45 – 55 Pcs/min
Paper Weight:
160 GSM To 300 GSM
Cup Height:
Min 30MM To Max 115MM
Automatic:
Full Automatic
Warranty:
2 Years
Place of Origin:
China
Brand Name:
Mingyuan
Certification:
CE, SGS
Model Number:
JBZ-A12
Highlight:

fully automatic paper cup machine

,

automatic paper cup making machine

,

9 Oz Paper Cup Machine

Product Description

9 Oz Coffee Automatic Paper Cup Machine



JBZ-A12 Technical Data



Paper Cup Size Range 1.5 to 12 oz (40 to 330 ml)
Production Speed 45 to 55 pcs/min
Paper Cup Top Diameter Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter Min. 35 mm to Max. 75 mm
Paper Cup Height Min. 35 mm to Max. 110 mm
Raw Material 170 to 280 gsm, Single PE Coated Paper
General Power 4.8 kW
Electricity 380 V, 3 Phases or 220V, 1 Phase
Weight 1500 kg
Measurement 2.6 m × 1.22 m × 1.7 m



Features


1. The main part includes ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter.


2. Double side PE coated paper cup machine owns photoelectric detection, fault alarm and counting functions.


3. This paper cup making machinery features simple operation, stable performance, small occupying area, high efficiency and more profit. It has become the best choice for customers’ investment.


4. Double side PE coated paper cup machine should be cleaned and lubricated regularly.


5. We use wooden cases to package this paper cup making machinery, which is convenient for sea transportation.



Applications



Paper cups produced by JBZ-H12 single PE coated paper cup machine can be used for tea, coffee, milk, ice cream, juice and water. It is an economical and classical paper cup forming machine suitable for making cups with 2.5 to 12 oz. If customers require bigger cups, our model JBZ-H16 or JBZ-S22 will be your best choice.



Making Progress:



1. PE Coating : Use PE-Coating Machine Coating PE film on raw white paper; Coating one side name Single Side PE Coated Paper; Coating two sides name Double Sides PE Coated Paper



2. Slitting : Use Slitter slitting PE Coated Rolling Paper to [ sheet paper(make cup body) ] and [ cup-bottom rolling paper ].



3. Printing : Use Printing Machine printing all kinds of design on the sheet paper



4. Die Cutting : Use Die Cutting Machine cut the Pre-printed sheet paper to cup-fan-wall body



5. Forming Paper Cups : Use Paper Cup Forming Machine or Paper Bowl Forming Machine auto make paper cups,paper bowls. One worker is enough for forming machine, only need operator put the cup-fan-wall body to the entrance and the rolling-bottom to the bottom entrance, and then take the finished cups out.



6. Packaging : Pack the finished paper cups in plastic bags ,and then bags to cardboard box.



FAQ



Q1: What's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer FOB Ningbo price .but we also accept other way like L/C , western union ,and do CFR&CIF etc.


Q2. Where I can get the raw material?
solution1: buy printed and cutted paper cup fan from us
solution2: find the factory in your area to print and cut for you
solution3:buy the flexo printing machine and die cutting machine to print and cut by yourself .
if you are new in this field ,i suggest you'd better to adopt solution 1 or 2 when you are in first stage.


Q3. Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one worker ,what you do is just learn some basic thing like wet the paper cup fan , lubricating the moving parts regularly .And we will sent you video ,we suggest you to come to visit our factory to learn more thing by yourself for free , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 24 hrs .Our engineer also can be distributed to overseas as you required.


Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.



Advantage:



1. Quenching treatment for all the machinery,so its hardness is much more better than others by 20%.



2. Divided box: 125’ type, it has the long life than 100’



3. Base board is nearly double than others,guarantee the machinery working stable ,longer using.



4. Our equipment of the heating use aluminum,it has better thermal conductivity.



5. Double Belt and Three Tier Chain make machine running stable, long strong use life.



After service



1 The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.



2.Test run of the machine & training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.



3.We can dispatch technologists to buyer’s factory,guiding installation,adjustment for a period,the buyer in charge of the salary, traffic fee, boarding and lodging, communication.



4.We supply the consumable spare parts for free for two years use



Loading Machine:



9 Oz Coffee Automatic Paper Cup Machine 0



Packing:

FCL: paper cup machine with wood tray and plastic film.
LCL: paper cup machine with wood box and plastic film.
We will Spraying oil in paper cup machine for keeping rust away

20” Container Max loading 4 sets Paper Cup Machine

40” Container Max Loading 8 sets Paper Cup Machine
