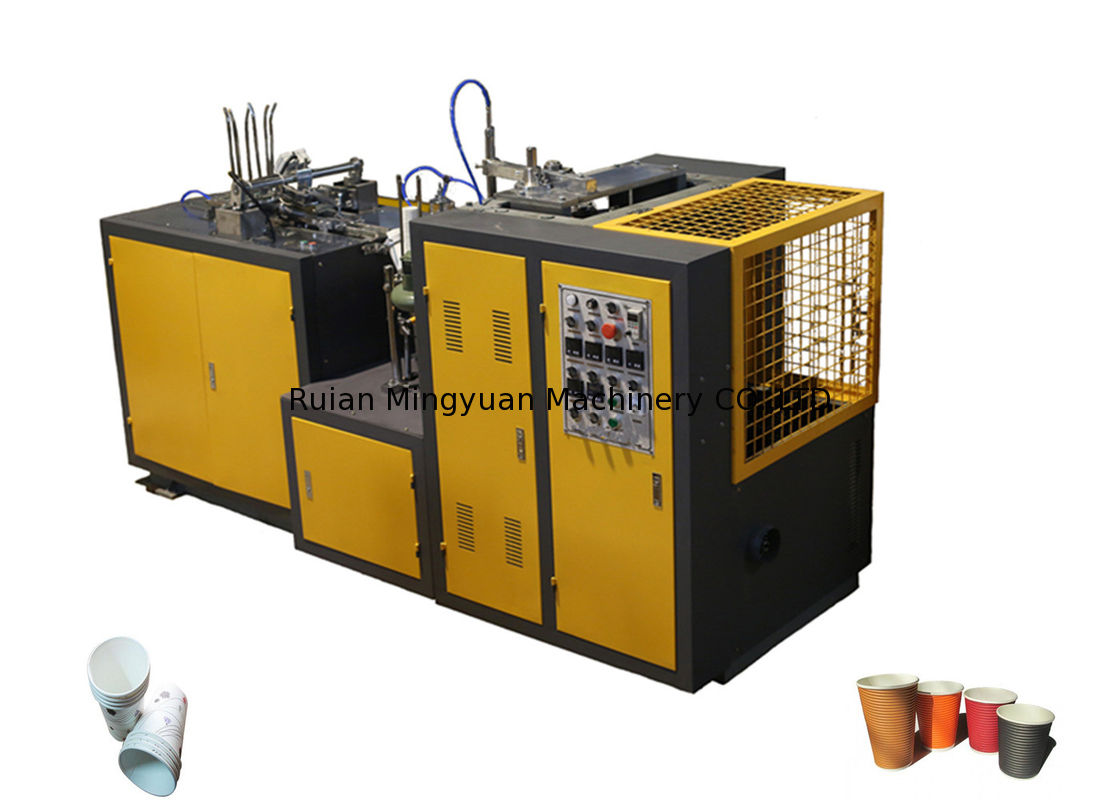

Commercial Paper Cup Making Machine High Efficiency With Multi Working Station
Quick Detail
| Paper Cup Size |
3 oz-12 oz (mold exchangeable) |
| Speed |
45-55 Pcs/minute |
| Suitable paper weight |
140-350gsm |
| Net Weight |
1500KG |
| Warranty |
2 years |
| Usage |
Hot drink and Cold drink |
| after-sales service |
24 Hours Online Service, Provide Operation CD and Manual, Engineers available to service machinery overseas |
Description
Model JBZ-H12 Paper Cup Making Machine is an advance cup machine with multi-working station, functions of failure alarm, photocell detection, counter and easier maintain, safer operation and the advantages of humanism design. Our design machine with long use time( more than 10 years) and Stable running function.
Competitive Advantage
We using Divided box is 125 type, which has two years warranty.
Other company use 100 type divided box.
125 type is much bigger than 100 type, is stronger.
100 TYPE GEAR BOX AFTER ONE YEAR WILL FACE GEAR WORM PROBLEM
And BEARING PROBLEMS WHICH WERE NOT TRACED IN OUR GEAR BOX
Specification
| Model |
JBZ-H12 Paper Cup Making Machine |
| Paper Cup Size |
3oz-12oz (mold exchangeable) |
| Raw Material |
One-side PE (polyethylene) film coated / laminated paper
Ultrasonic machine can be produce both single and double PE paper |
| Suitable paper weight |
140-500gsm |
| Productivity |
45-55 pcs/ minute |
| Power Source |
220V/380V 50Hz or other required |
| Total Power |
4.8KW |
| Total Weight |
1500KG |
| Package Size(L x W x H) |
2650 * 1300 * 1700 mm |
| Working Air Source |
0.4Mpa, Air Out-put:0.6 m3/minute |
| Making Double PE coated paper cups, need to buy an air compressor |
|
|
Making Process
Raw Material: PE Coated Paper Roll
Printing Step: The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the cups.
Cutting Step: In this step, you should decide the size of the cup, so we can cut the paper fan in decided size.
Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.
FAQ
1. Are you trading company or manufacturer?
we are one of the leading manufacturer of the paper cup machine die cutting machine, cup lid machine, paper plate machine etc paper product machinery and paper cup, paper plate etc paper product in China.
2. Do you have quality certificate?
we have got the ce, sgs, certificate for our product and factory.
3. What's the delivery time?
Around 20~30days, however, based on order.
4. where is your factory location?
we are locate in Zhongzhou industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
5. How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1). All raw material we used are environmental-friendly;
2). Skilful workers care every details in handling the producing and packing processes;
3). Quality Control Department specially responsible for quality checking in each process.
Why Choose Us
♦ Advantages
1. Quality assurance both for our products and service for after-sales.
2. Favorable price.
3. Great variety of products.
4. Attractive design.
5. Environment Friendly Technology
6. OEM and ODM service provided.
♦ Our QC team
A QC team with more than 5 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
