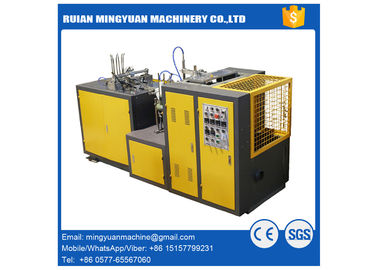

3OZ - 12OZ Single PE Coated Paper Cup Making Machine , Paper Cup Shaper Equipment
Description:
Model JBZ-H12 Paper Cup Making Machine is an advance cup machine with multi-working station, functions of failure alarm, photocell detection, counter and easier maintain, safer operation and the advantages of humanism design. Our design machine with long use time( more than 10 years) and Stable running function.
Specification
| Model |
JBZ-H12 Paper Cup Making Machine |
| Paper Cup Size |
3oz-12oz (mold exchangeable) |
| Raw Material |
One-side PE (polyethylene) film coated / laminated paper
Ultrasonic machine can be produce both single and double PE paper |
| Suitable paper weight |
140-500gsm |
| Productivity |
45-55 pcs/ minute |
| Power Source |
220V/380V 50Hz or other required |
| Total Power |
4.8KW |
| Total Weight |
1500KG |
| Package Size(L x W x H) |
2650 * 1300 * 1700 mm |
| Working Air Source |
0.4Mpa, Air Out-put:0.6 m3/minute |
| Making Double PE coated paper cups, need to buy an air compressor |
| |
Advantage
Economical and practical
Heating system seal the paper body
Working for 24 hours with no stopping
Just need one worker to operate
Loading Machine
FCL: paper cup machine with wood tray and plastic film.
LCL: paper cup machine with wood box and plastic film.
We will Spraying oil in paper cup machine for keeping rust away
20” Container Max loading 4 sets Paper Cup Machine
40” Container Max Loading 8 sets Paper Cup Machine
Applications
Making Process
Raw Material: PE Coated Paper Roll
Printing Step: The Pe coated paper should be printed with different design and different color. So when we make the paper, there will be beautiful design with logo on the cups.
Cutting Step: In this step, you should decide the size of the cup, so we can cut the paper fan in decided size.
Paper Forming Step: You should put the paper fan on the machine, so the paper fan could be folded by the paper cup machine. Then the paper cups are formed, we can use the cups and enjoy delicious drinks.
Why Choose Us
♦ Advantages
1. Quality assurance both for our products and service for after-sales.
2. Favorable price.
3. Great variety of products.
4. Attractive design.
5. Environment Friendly Technology
6. OEM and ODM service provided.
♦ Our QC team
A QC team with more than 5 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
