Detail Information
Product Name:
Paper Cup Machine
Size Of Cups:
2 OZ To 12 OZ
Speed:
50-60 Pcs/min
Raw Material:
Single PE Coated Paper Or Double PE Coated Paper
Paper Weight:
160 – 500GSM
Machine Weight:
1600 KG
Place of Origin:
China
Brand Name:
MINGYUAN
Certification:
CE/ SGS
Model Number:
JBZ-A12
High Light:

disposable tea cup machine

,

tea paper cup making machine

,

PE Coated Paper Tea Cup Making Machine

Product Description



Automatic Single PE Coated Paper Tea Cup Making Machine Chain Running Stable





We provide client best quality, best price go with best service machine to support client business.







Production Capacity: 50-60 Cups per minutes

Paper Cup Size: 3 oz-12 oz (mold exchangeable)

Lifetime: About 10 years

Usage: paper tea cup,coffee cup ,etc

after-sales service:  Engineers available to service machinery overseas,Free training.






Description:

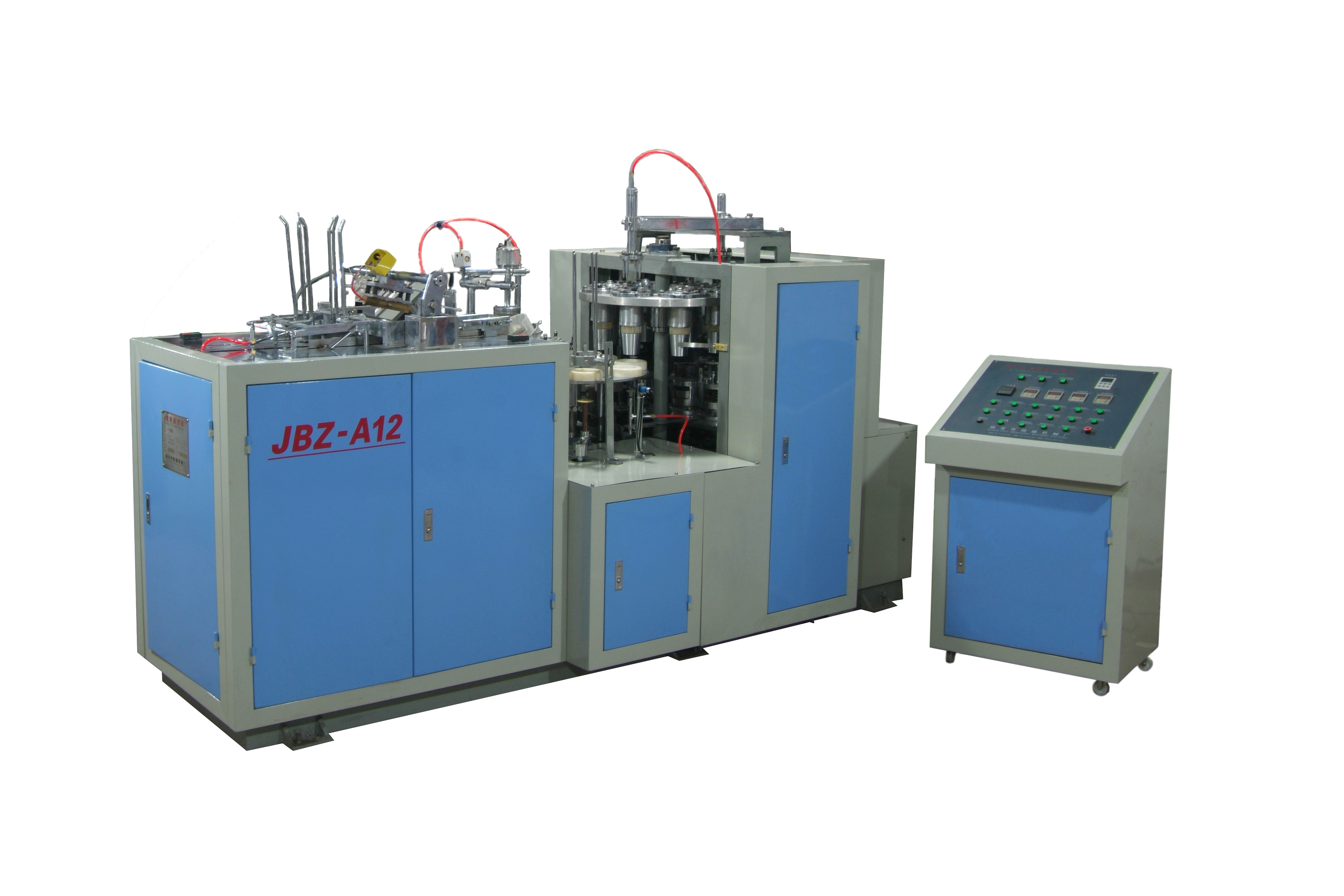

Model JBZ-A12 Automatic Single PE Coated Paper Cup Forming Machine is an automatic machine with multiworking station,which has the function of photocell detection,failure alarm,counter and the advantages of humanism design,safer operation and easier maintenace.





Specifications:



Model

JBZ-A12 Paper Cup Forming Machine

Paper Cup Size

3oz-12oz (mold exchangeable)

Raw Material

One-side PE (polyethylene) film coated / laminated paper



Suitable paper weight

140-250gsm

Productivity

50-60 pcs/ minute

Power Source

220V/380V 50Hz or other required

Total Power

4.8KW

Total Weight

1500KG

Package Size(L x W x H)

2700 x1300 x1700mm

Working Air Source

0.4Mpa, Air Out-put:0.6 m3/minute







Competitive Advantage:





 I.  We use Divided box is 125 type, which has two years warranty.



 2. We use Big type bearing which stronger than normal bearing



 3. We use 2 belt





Making Process:



It makes single PE paper cups after running a whole procedure of automatic paper cup fan feeding,cup side body sealing,silicone-oil lubricating,bottom punching,bottom heating,bottom knurning,top curling and cup discharging.It is an ideal equipment of making paper cups for hot drinks.



Workshop



Automatic Single PE Coated Paper Tea Cup Making Machine Chain Running Stable 0



Spare Parts For Paper Cup Machine



Automatic Single PE Coated Paper Tea Cup Making Machine Chain Running Stable 1



advantage:



1. Quenching treatment for all the machinery,so its hardness is much more better than others by 20%.

2. Divided box: 125’ type, it has the long life than 100’

4. Base board is nearly double than others,guarantee the machinery working stable ,longer using.

5. Our equipment of the heating use aluminum,it has better thermal conductivity.

7. Double Belt and Three Tier Chain make machine running stable, long strong use life.



Note:



Available to make any special size paper cup machine and cup mould.
