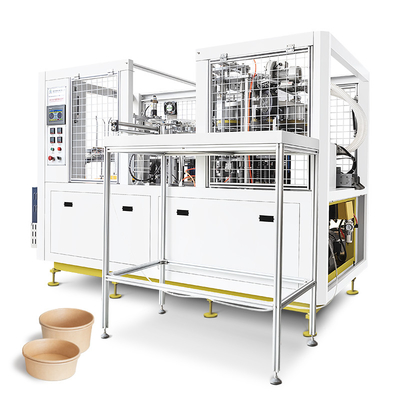

Disposable Ultrasonic Paper Bucket Making Machinery High Speed
JBZ-OCBucket intelligent High speed ultrasonic paper bucket machine speed is 50-60 pcs each min . Cup size range is from 500-1800ML .The automatic oil lubrication system guarantees all mechanical parts to work more smoothly . machine is equipped with PLC control system and failure sensor detecting system to detect abnormal work, and improves the stability and life of the machine. It can finish the whole process including paper feeding, side sealing , cup bottom punching & feeding, hot air bottom heating , knurling, cup-top curling ,cup stacking.
| Model |
JBZ-OCBUCKET 185 Salad Paper Bowl Forming Machine |
| Paper Cup Size |
Top dia :140-185mm Height:50-160mm Bottom dia:128-165 |
| Raw Material |
Single/Double PE paper |
| Suitable Paper Weight |
170-320g/m2 |
| Speed |
50-60 PCs/min |
| Total Power |
12KW |
| Power Source |
50/60HZ, 380V ( better use 380V, 3 Phase ) or special Power requirements |
| Total Weight |
3200KG |
| Package Size (L*W*H) |
2700x1600x2000mm |
| Packing |
Seaworthy Wooden Case |
| Air Source Specification |
0.5-0.8MPA, 0.4:6m3/min |
Using famous brand motors, the quality of accessories is guaranteed
1 1 year warranty service.
2 Free replacement of parts within 1 year (free shipping).
3 Parts are provided free of charge within 2 years, but no free shipping.
Remote guidance, save your time
1 We provide Operation & Maintenance CD.
2 When there is a problem with the machine, please take a video of the problem and send it to us.
3 We will arrange professionals to help you deal with it through video or document tutorials.
Q1. Are you trading company or manufacturer?
A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product machinery in China.
Q2. Do you have quality certificate?
A:we have got the ce certificate for our machine.
Q3. What's the delivery time?
A:Around 20~30 days, however, based on order.
Q4. where is your factory location?
A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is
feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and packing processes;
2).Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
