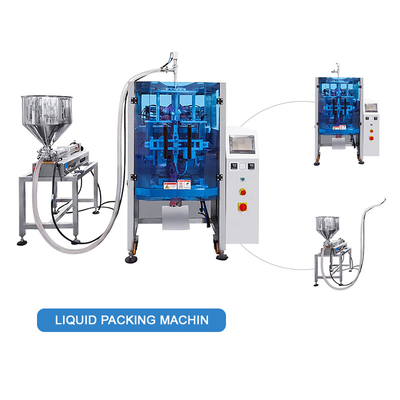

Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm

Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm

    • Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm
    • Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm
    • Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm
    • Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm
  • Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm

    Product Details:

    Place of Origin: China
    Brand Name: MING YUAN
    Certification: CE
    Model Number: MY-S460

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 5400USD to 8000USD Each set
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 40 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 30 Sets Per Month
    Contact Now
    Detailed Product Description
    Type: MY-S460 Honey Fluid Packing Machine Bag-making Length: 80-300mm
    Bag-making Width: 80-220mm Packing Film Width: 160-460mm
    Packing Capacity: 50-2000ml Packing Speed: 10-75bags/min
    Power: 220V/50hz 2.5KW Air Power: 0.8Mpa
    High Light:

    Honey Stick Packaging Machine Multifunction

    ,

    300mm Honey Stick Packaging Machine

    ,

    2000ml Honey Stick Packaging Machine

    Honey Stick Pack Packaging Machine Pouch Forming Filling Packaging Machinery



    Introduction of Multi Function Packaging Machine

        Fluid packaging machine is widely used to pack any fluid products. Machine speed is 10-75 bags/min, it's suitable for back-side, three-side and four-side sealing forms.The whole machine is controlled by PLC program. The function parameters are set by man-machine interface touch screen. The main electrical components are famous brands at home and abroad. The control is stable and the operation is simple. It has functions of automatic filling, measuring, bag making, sealing, printing batch, counting, and finished product output.It is the best choice for filling and packing Semi-fluid.



    Parameters of Multi Function Packaging Machine

    Type MY-S460
    Bag-making length 80-300mm
    Bag-making width 80-220mm
    Packing film width 160-460mm
    Packing capacity 50-2000ml
    Packing speed 10-75bags/min
    Power 220V/50hz 2.5KW
    Air power 0.8Mpa
    Air consumption 230L/min
    Overall Dimension 2000*1168*2150mm
    Weight 900kg



    Detail picture of Multi Function Packaging Machine

    Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm 0
    Bag Forming Unit
    Adopt 304 Stainless steel, can form different bag width size by changing mould, the bag height can be adjustable.

    Honey Stick Pack Packaging Machine Multi Function Pouch Forming Filling 300mm 1
    Vertical Sealing System
    Intelligent PID constant temperature heat sealing, beautiful shape and beautiful bag shape.



    Application

    Specially designed for liquid products, the packaging effect is more beautiful than the traditional vertical liquid packaging machine, and the sealing is firmer.



    Food industry: bean paste, lotus paste, fruit jam, pulp, egg liquid, sesame sauce, meat sauce, salad dressing, etc.



    Chemical industry: grease, slurry, detergent, glutinous rice glue, animal protein glue and other liquids, semi-fluid, high-viscosity materials, etc.
