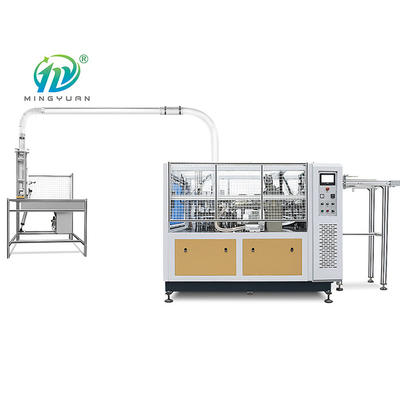

Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding

Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding

    • Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding
    • Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding
    • Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding
    • Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding
    • Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding
    • Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding
  • Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding

    Product Details:

    Place of Origin: China
    Brand Name: MING YUAN
    Certification: CE
    Model Number: JBZ-DW100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 20000USD to 25500USD Each set
    Packaging Details: Export Standard Wooden Case
    Delivery Time: 40 days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 30 Sets Per Month
    Contact Now
    Detailed Product Description
    Model: High Speed Double Wall Paper Cup Sleeve Machine JBZ-DW100 Cup Side Welding: Ultrasonic Heater
    Cups Specifications: 4-22OZ Paper Specifications: 180-350g/㎡ PE Coated Paper,Gloss Printed Paper (gray Based Paper With Gloss Printing),other Film Coated Paper (can Be Welded By Ultrasonic)
    Speed: 65-75pcs/min Power Supply: 6KW
    Weight: 2400kg Packing Dimensions: 2700 X1300 X1800 Mm(L*W*H)
    High Light:

    Side Welding Paper Cups Sleeve Machine

    ,

    6KW Paper Cups Sleeve Machine

    ,

    Paper Cups Sleeve Machine 65pcs/min

    Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Cup Side Welding

    Paper Cup Sleeve Machine Products Description

    JBZ-DW100 intelligent model automatic double wall cup machine which speed is 65-75PCS/min , it is equipped with an open intermittent indexing cam and gear transmission, longitudinal axis structures. The whole machine is adopted with oil lubrication system, which makes all mechanical parts work much more smoothly. Machine is with PLC control system and auto failure detecting by sensors , All the operation can be done easily in the touch screen , It whole process is including automatic paper feeding , ultrasonic sealing, paper sleeve is transferred by robot hand , oiling, bottom folding, stepping gluing system, and double wall paper cup stacking.



    Paper Cup Sleeve Machine Product Features

    1.It is installed with PLC control system and touch screen, all parameters can be set on the control panel, easy to operate.


    2.With auto failure detection sensor, and if machine is running into troubles,it will show error information in touch screen to remind the client to solve it, which is good for machine maintaining.


    3.With CNC processing, lighter in weight and it is greatly improves the torque force of the spindle longer service life and better quality, support machine running speed higher.



    Paper Cup Sleeve Machine Product Specification

    Cup Side Welding Ultrasonic heater
    Cups Specifications 4-22OZ
    Paper Specifications 180-350g/㎡ PE coated paper,Gloss printed paper (gray based paper with gloss printing),other film coated paper (can be welded by ultrasonic)
    Speed 80-100pcs/min
    Power supply 6 KW
    General Power 380V 50HZ /220 50HZ
    Air source 0.3-0.5m³/min
    Weight 2400kg
    Packing Dimensions 2700 x1300 x1800 mm(L*W*H)
    OEM ( Show Client Company Name in Machine Panel ) is welcome in our factory



    Paper Cup Sleeve Machine Detail image

    Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding 0

    Hot Melt System:It's an option, use for paper materials such as white cardboard paper ripple paper (corrugated paper) without glue.



    Double Wall Paper Cup Sleeve Machine Ultrasonic Heater Side Welding 1

    Internal Structure:Longitudinal shaft gear transmission ,cylindrical indexing cam,optimize the internal layout of the machine,ensure the transmission accuracy of the machine ,make all parts run synchronously,and prevent machine parts from colliding.Box structure design and oil lubrication system,those make all mechanical parts working much more smoothly and reduce damage of the spare parts,easy for maintaining.



    Applications
    JBZ-DW100 paper cup sleeve machine is designed for paper cup afterward process. Its main function is to wrap and sleeve printed blank perfectly to the cups. The out-layers have heat-resistant function, it can increase the strength and can have good printing effect of the cups.



    After-sales Service

    Using famous brand motors, the quality of accessories is guaranteed!



    1. 1 year warranty service.

    2. Free replacement of parts within 1 year (free shipping).

    3. Parts are provided free of charge within 2 years, but no free shipping.



    Remote guidance, save your time!



    1. We provide Operation & Maintenance CD.

    2. When there is a problem with the machine, please take a video of the problem and send it to us.

    3. We will arrange professionals to help you deal with it through video or document tutorials.



    FAQ

    Q1. Are you trading company or manufacturer?
    A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product machinery in China.

    Q2. Do you have quality certificate?
    A:we have got the ce certificate for our machine.

    Q3. What's the delivery time?
    A:Around 20~30 days, however, based on order.

    Q4. where is your factory location?
    A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.

    Q5.How does your factory do regarding quality control?
    A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
    1).Skilful workers care every details in handling the producing and packing processes.
    2).Quality Control Department specially responsible for quality checking in each process.

    Q6. What terms of payment you usually use?
    A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
