Detail Information
Diameter Of Roll:
1300mm
Slitting Speed:
50-500m/min
Max Diameter Of Rewinding:
600mm
Max Diameter Of Unwinding:
1000mm
Inner Dia.Of Paper Core:
3"
Tolerance Of EPC:
≤0.1mm
Min Width Of Produce:
20mm
Total Power:
20KW
Place of Origin:
China
Brand Name:
MING YUAN
Certification:
CE
Model Number:
MYFQ-1300C
High Light:

Jumbo Roll Paper Slitting Rewinding Machine

,

3 Phase Paper Slitter Rewinder Machine

,

20KW Slitting And Rewinding Machine

Product Description

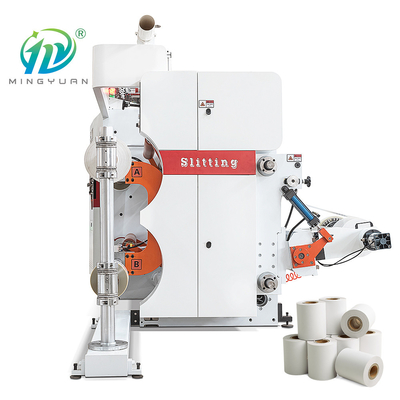

High Performance Jumbo Roll Paper Roll To Roll Slitting Rewinding Machine

     MYFQ-1300C Intelligent High Speed Slitting Rewinder Machine with speed 50-500m/min . It is mainly used to cut laminated paper, plastic film roll materials etc .It is adopted with SIEMENS PLC control system to achieve accurate and stable . Slip friction rewinding shafts which make rewinding more stably and accurately, three servo motors control transmission synchronously. Automatic web edge guider system makes paper move more straightly and accurately . Round / flat blade slitting device are applied for different materials. Built-in a vacuum-type waste edge exclusion system to absorb the waste edge out away.



Model MYFQ-1300C
Suitable Applied for various kinds of super-large coils'slitting and rewinding,such as
20g/m2~300g/m2 self-adhesive,coated paper,PVC,PET and other plastic coils.
Diameter Of Roll 1300mm
Slitting Speed 50-500m/min
Max Diameter Of Rewinding 600mm
Max Diameter Of Unwinding 1000mm
Voltage 3 Phase380V/220V,50HZ
Inner Dia.Of Paper Core 3"
Tolerance Of EPC ≤0.1mm
Min Width Of Produce 20mm
Total Power 20KW
Weight 3500Kg
Ove Rall Dimension (L*W*H) 2050mm*3000mm*1720mm
OEM(Show Client Company Name in Machine Panel)is welcome in our factory



High Performance Jumbo Roll Paper Roll To Roll Slitting Rewinding Machine 0

High Performance Jumbo Roll Paper Roll To Roll Slitting Rewinding Machine 1

High Performance Jumbo Roll Paper Roll To Roll Slitting Rewinding Machine 2

High Performance Jumbo Roll Paper Roll To Roll Slitting Rewinding Machine 3

Using famous brand motors, the quality of accessories is guaranteed


1 1 year warranty service.
2 Free replacement of parts within 1 year (free shipping).
3 Parts are provided free of charge within 2 years, but no free shipping.


Remote guidance, save your time

1 We provide Operation & Maintenance CD.
2 When there is a problem with the machine, please take a video of the problem and send it to us.
3 We will arrange professionals to help you deal with it through video or document tutorials.
