Detail Information
Punch Speed:
15-35 Punch/min
Max. Forming Size:
430*300mm
Max. Forming Depth:
Standard Type 46mm Max Target 60 MM
Max. Material Width:
450mm
Stroke Range:
100-280mm
Compressed Air:
0.4-0.7Mpa
Mold Cooling:
60L/H Tap Water /recycle Water
Total Power:
8.2Kw
Main Motor Power:
2.2Kw
Material Thickness:
0.15-1 Mm
Place of Origin:
China
Brand Name:
MING YUAN
Certification:
CE
Model Number:
DPP-450W
High Light:

0.7Mpa Plastic Cup Lid Thermoforming Machine

,

35 punch/min Plastic Lid Thermoforming Machine

,

8.2Kw Plastic Lid Forming Machine

Product Description

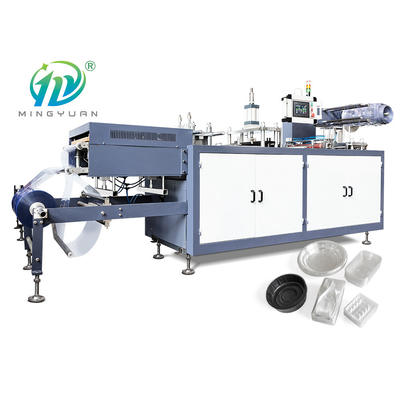

Full Automatic High Quality Plastic Cup Lid Thermoforming Machines

     "Automatic Plastic Thermoforming Machine,This series mainly used for making different kinds of plastic trays, plastic lid and other plastic packaging products.
Machine production process started from roll material feeding, double heating, forming products,punching ,cutting,products stock, Waste collection, etc.
The operation is controlled by PLC with touch screen.Convenient operation, outstanding performance, low noise and high quality."

items
DPP-450W Plastic Lid thermoforming Machine
Punch speed
15-35 punch/min
Max. Forming size
430*300mm
Max. Forming depth
Standard Type 46mm Max Target 60 MM
Max. Material width
450mm
Stroke Range
100-280mm
Compressed air
0.4-0.7Mpa
Mold cooling
60L/H tap water /recycle water
Total power
8.2Kw
Main motor power
2.2Kw
Material thickness
0.15-1 mm
Overall dimension
2900*1000*1800MM
Packing Size
3100*1100*1900MM
Weight
1500 KG
Voltage
380V/220V 50HZ
OEM(Show Client Company Name in Machine Panel)is welcome in our factory

Full Automatic Plastic Cup Lid Thermoforming Machines 15-35 punch/min 0Full Automatic Plastic Cup Lid Thermoforming Machines 15-35 punch/min 1Full Automatic Plastic Cup Lid Thermoforming Machines 15-35 punch/min 2Full Automatic Plastic Cup Lid Thermoforming Machines 15-35 punch/min 3

Using famous brand motors, the quality of accessories is guaranteed

1 1 year warranty service.

2 Free replacement of parts within 1 year (free shipping).
3 Parts are provided free of charge within 2 years, but no free shipping.



Remote guidance, save your time

1 We provide Operation & Maintenance CD.

2 When there is a problem with the machine, please take a video of the problem and send it to us.
3 We will arrange professionals to help you deal with it through video or document tutorials.
