Four Colour Flexo Printing Press Machine For Plastic Film / Non Woven Fabric

Product Details:

Place of Origin:	China
Brand Name:	MING YUAN
Certification:	CE
Model Number:	YT2-800

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 15000USD to 16000USD Each set
Packaging Details:	Export Standard Wooden Case
Delivery Time:	40 days
Payment Terms:	L/C, D/A, D/P, T/T, MoneyGram
Supply Ability:	30 Sets Per Month

Contact Now

Detailed Product Description

Voltage:	380V, 50HZ, 3 Phase, 380V, 50HZ, 3 Phase	Power:	27kw
Max Film Width:	830mm	Max Print Width:	760mm
Printing Length (repeat ):	200-1000mm	Max. Mechanical Speed:	60m/min
Max. Printing Speed:	20-50m/min (actual Speed Is Determined According To Printing Materials, Printing Plates, Inks, Etc.)	Weight:	3000KG
High Light:	27kw Four Colour Flexo Printing Machine , 380V Non Woven Bag Flexo Printing Machine , Four Colour Plastic Film Flexo Printing Machine

Superior Quality Four-Colour Flexo Printing Machine

Main Technical Parameters
Model	YT4-800
Suitable Material	Plastic film, paper, non-woven fabric, woven fabric
NO. Of printing color	4colors
Max Film Width	830mm
Max Print Width	760mm
Printing length (repeat )	200-1000mm
Max. Mechanical speed	60m/min
Max. Printing speed	20-50m/min (actual speed is determined according to printing materials, printing plates, inks, etc.)
Transmission way	Spur gear drive
Register precision	Longitude:±0.5mmTransverse:±0.5mm
Master motor power	2.2kw, (domestic)
The frequency converter	2.2kw , (domestic)
Machine power	27kw
Cover Dimensions	3.95 × 1.8 × 2.6M
Weight	3000KG
Voltage	380V, 50HZ, 3 phase
Unwnding unit
Unwind way	Center unwind
Tension system	Manual tension (optional: automatic magnetic powder tension / semi-automatic magnetic powder tension)
EPC system	None (Optional: Yes)
Unwind diameter	600MM
Unwind material holder	Mechanical shaft (optional air shaft)
Printing Unit
Anilox roll	4 metal anilox rollers
Inking Running	Each color group independently transports 4 inks
Print plate lift system	Automatic air lift version
Press power	manual adjustment
Adjusting way of Register	manual adjustment
Drying unit
Drying model	infrared
Air blower (big)	0.75W 1 1.1W 1
Air blower (small)	independent drying
Drying power	10kw
ReWinding Unit
Rewinding way	Center winding
Tension system	Manual tension (optional: automatic magnetic powder tension / semi-automatic magnetic powder tension)
Rewinding diameter	600MM
Rewind material holder	Mechanical shaft (optional air shaft)

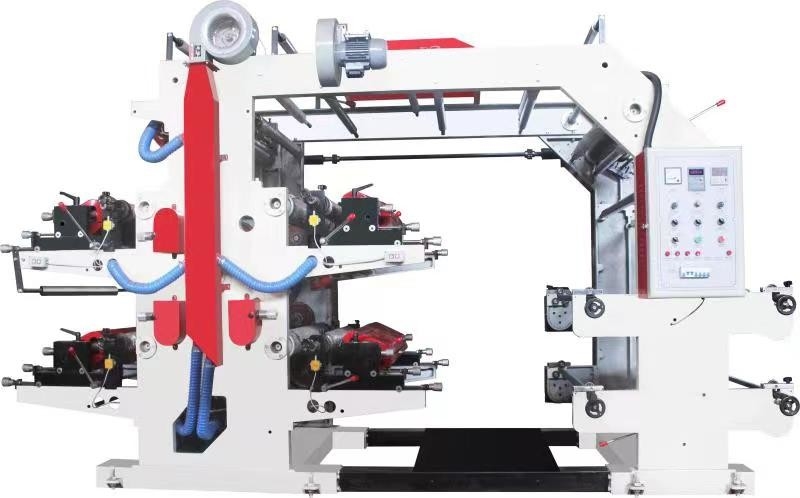

Four Colour Flexo Printing Press Machine For Plastic Film / Non Woven Fabric 0

Using famous brand motors, the quality of accessories is guaranteed

1 year warranty service.
Free replacement of parts within 1 year (free shipping).

Parts are provided free of charge within 2 years, but no free shipping.

Remote guidance, save your time

We provide Operation & Maintenance CD.
When there is a problem with the machine, please take a video of the problem and send it to us.

We will arrange professionals to help you deal with it through video or document tutorials.

Q1. Are you trading company or manufacturer?

A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product

machinery in China.

Q2. Do you have quality certificate?

A:we have got the ce certificate for our machine.

Q3. What's the delivery time?

A:Around 20~30 days, however, based on order.

Q4. where is your factory location?

A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is

feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.

Q5.How does your factory do regarding quality control?

A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:

1).Skilful workers care every details in handling the producing and packing processes.

2).Quality Control Department specially responsible for quality checking in each process.

Q6. What terms of payment you usually use?

A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
