|Place of Origin:||China|
|Minimum Order Quantity:||negotiate|
|Packaging Details:||Export Standard Wooden Case|
|Delivery Time:||25 - 35 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||30 Sets Per Month|
|Name:||Paper Straw Machine||Feature:||Energy Saving|
|Application:||Food Grade Paper||Motor:||3.0KW|
|Inner Diameter:||4-12mm||PLC:||Panasonic Made By Japan|
|Wall Thickness:||0.5-1mm||Winding Speed:||40-55 Meters/min|
paper straw making machine,
paper drinking straw equipment

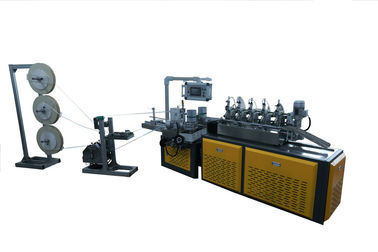

Energy Saving Paper Straw Machine With T Bar Paper Roll Bracket 0.5-1mm Wall
The PS-80 high speed paper straw machine integrates raw material feeding ,gluing, winding and cutting at one time. This Machine is suitable for producing different sizes of paper straws and very small paper tubes.
1. It is adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2.Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use can choose Single or double glue coating unit
3. Spiral winding unit , specialized operation system , Belt tension device (hand-wheel driven)
4.Round knifes cutting section is adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency and stable
|Ø It adopts Panasonic PLC and meter counter, all the working parameters can be setup on the control panel. Panasonic PLC control system, a mainframe operating|
|Ø It adopts Weinview Touch Screen from Taiwan, all the parameters can be displayed on the control panel, and easy operation.|
|Ø It adopts imported frequency inverter to control the AC motor, the machine working is more stable|
|Ø It adopts separate electrical control box, and it is with input plug terminal, the sale after service and repair shall be more easier|
|Ø Text Display operation, all of the features automatic memory, automatic preservation, automatic fault display.|
|Ø It adopts dialogue monitor, it is with function of automatic store, trouble display, working position|
|Ø It adopts imported Multi cutters to cut the paper core, it is high precision, and more bearable no longer incision more precision without wasting.|
|Ø The transmission parts with extreme quiet design,adopt special treatment, it is high efficiency and low maintenance.|
|Ø It adopts double side glue coating devices, the paper starw is more sticky and stronger. The use of double-sided adhesive plastic trough independent stainless steel scraper polyurethane imports, production of a paper on the strength of stronger glue on one side of the traditional paper machine.|
|Ø It adopts Sensor for the paper straw length tracking, after get to the setup length, the paper core shall be cut off.|
|Ø Circuit System with Remote Control function, users can travel in the office or in the field can be a computer monitor in the operation of plant equipment. If the circuit and system failure and other reasons, and in our communications tools and software control, plant technical personnel can be created to implement and maintain operational function|
Below Simple answer for Client question:
1, what type of material is used to make paper straw?
white kraft paper with Food grade: 120 GSM and 68 GSM ( pls buy it as 2:1 which means if buy 2 rolls 120GSM then 68 GSM buy 1 roll)
Paper Roll Bracket :The paper rolls can be easily installed in it and rotate flexibly.
2, What type of glue is used to make the paper straw? It need to be FDA approved? We want to know technical spec of the glue we need and some quantity to produce here in my factory.
Name: WATER BASED ADHESIVE
Must is by FDA approved ( Food Grade)
Content Of Non Volatile Matter: ≥46-50%
Ph: round 5.2
Remnants VAC: ≤0.09%
Particle Diameter: 0.9um
Dilution Stability: ≤3.4%
Minimum Film Forming Temperature: ≤0.9℃
Price: round 2200usd each ton
Different type glue price also will a little different.
New Mingyuan Machinery Design High Speed Paper Straw Machine Function Brief:
1. Stainless Steel Glue Unit
Choose gluing single side or double sides. The drinking straws are glued evenly and stuck firmly. ( Glue by WATER BASED ADHESIVE which FDA approved Food Grade)
2. Spiral winding unit , specialized operation system, Belt tension device (hand-wheel drive).
a. Send the paper to the winding unit .
b.Wind the paper shape to straw by winding system
3. Silicone oil lubrication system
Add silicone oil on the paper which for paper running smooth
4. Multi-blades cutting system and spiral rolling mechanism
multi-blades cutting system is controlled by encoder. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
5. Paper straw collecting system : collect the straws automatically and row them tidily in the container (By Client choose).
