Detail Information
Product Name:
Disposable Paper Cups Manufacturing Machinery
Feature:
High Speed
Dimension:
2750*1300*1750mm
Raw Material:
PE Coated Paper
Suitable Paper Weight:
140gsm—250 GSM
Power Source:
50Hz, (380V 3-phase, 50Hz)
Total Power:
6 KW
Working Power:
13.5 KW ( Blower – Hot Air)
Place of Origin:
China
Brand Name:
Mingyuan
Certification:
CE, SGS
Model Number:
JBZ-OCH12
High Light:

paper cup manufacturing machines

,

paper cup production machine

,

Disposable Paper Cups Manufacturing Machinery

Product Description

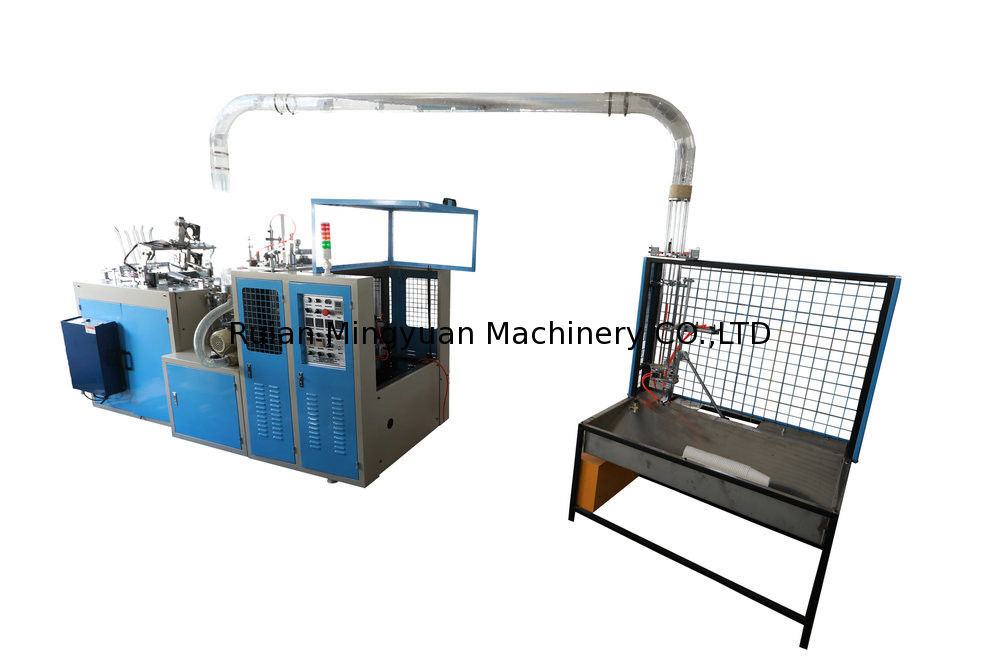

High Speed Disposable Paper Cups Manufacturing Machinery 2750*1300*1750mm



Disposable Paper Cups Manufacturing Machinery Description



Disposable Paper Cups Manufacturing Machinery is a kind of multi-station automatic molding machinery. It runs a series of successive procedures including automatic paper feeding, sealing, oiling, bottom punching, heating, knurling, curling, cup discharging, etc. Our double side PE coated paper cup machine (double PE coated paper cup making machinery) has become an ideal device for producing beverage cups, tea cups, coffee cups, advertising paper cups, market paper cups, ice cream paper cups or other disposable cone type food paper containers.

Half Set Mould: Different Size Cups with same bottom size and angle, Just different size in cup height and Top Dia. Clients can change half set mould to produce different size of cups ( Easy Change Mould).



1.PE Coated Paper:

1.1One & Two Side PE Coated Paper (roll & sheet),

1.2Printed and Punched cup-fan blanks (Cost base on size, thickness, print color),

2.Printing Machine (Printer) : print logo,

2.1 4-color GW-YS-850 Flexo print machine (Roll paper print),

2.2 6-color GW-YS-850 Flexo print machine (Roll paper print),

3. Die cutting machine, cut the printed paper to cup-fan blank,

3.1 GW-DC-750 Reel Die Cutting Machine,(One ROW, Max. 750x270mm cut),

3.2 GW--DC-930 Reel Die Cutting Machine,(3-ROW, Max. 900x510mm cut),

3.3 Sheet Paper Die Cutting Machine (ML-930, semi automatic hand machine)

4. Paper Cups Making & Forming Machines, make the cups,

5. Double Wall Paper Cup Machine,

6. Cup Plastic Lid Forming Machine.



Technical Specification:



Product Name: Disposable Paper Cups Manufacturing Machinery Feature: High Speed
Dimension: 2750*1300*1750mm Raw Material: PE Coated Paper
Suitable Paper Weight: 140gsm—250 GSM Power Source: 50Hz, (380V 3-phase, 50Hz)
Total Power: 6 KW Working Power: 13.5 KW ( Blower – Hot Air)



Open Cam System Cup Machine VS. Gear Box System Cup Machine



1. We using Open Cam System for machine running, which keep machine running high speed without any problem(long span life, without broken).

Gear Box for machine running. Speed only run 40 to 50 pcs each min, If speed go higher The gear box very easy broken.

Pls do noted: Open cam system or gear box system is heart of paper cup machine, If it is broken machine direct no use, very difficult to repair it.



2) Open cam model paper cup machine main shaft with 65mm diameter which is thicker than normal gear box machine(50mm only) .

High Speed Disposable Paper Cups Manufacturing Machinery 2750*1300*1750mm 0

3) Our design machine with Steel Cover on heater which in case paper cup on fire



High Speed Disposable Paper Cups Manufacturing Machinery 2750*1300*1750mm 1

4)Open Cam Cup Machine design with 2cm height border to prevent oil leaking out



High Speed Disposable Paper Cups Manufacturing Machinery 2750*1300*1750mm 2
