Automatic Paper Cup Machine / Paper Cup Maker Machine Printed Cutting 50ML Coffee

Good quality Paper Tea Cup Making Machine for sales
Good quality Paper Tea Cup Making Machine for sales
I'm Online Chat Now

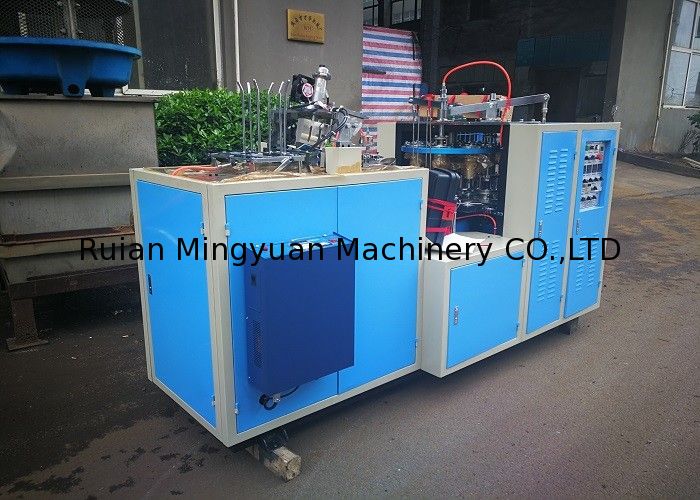

Automatic Paper Cup Machine / Paper Cup Maker Machine Printed Cutting 50ML Coffee

China Automatic Paper Cup Machine / Paper Cup Maker Machine Printed Cutting 50ML Coffee supplier

Large Image :  Automatic Paper Cup Machine / Paper Cup Maker Machine Printed Cutting 50ML Coffee

Product Details:

Place of Origin: China
Brand Name: Mingyuan
Certification: CE, SGS
Model Number: JBZ-A12

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 days
Payment Terms: T/T , L/C At Sight,, MoneyGram
Supply Ability: 300 Sets Per Year
Contact Now
Detailed Product Description
Gross Weight: 1600 KGS Raw Material: 170 To 280 Gsm, Single PE Coated Paper
Paper Weight: 160 GSM To 300 GSM Air Compressor: 0.4 Mpa
Cup Bottom Diameter: Min 35MM To Max 80MM Electricity: 380 V, 3 Phases Or 220V, 1 Phase

Automatic Paper Cup Machine / Paper Cup Maker Machine Printed Cutting 50ML Coffee



Quick Detail:



Paper Cup Size 3 oz-12 oz (mold exchangeable)
Speed 45-55 Pcs/minute
Suitable paper weight 140-350gsm
Net Weight 1500KG
Warranty 2 years
Usage Hot drink and Cold drink
after-sales service 24 Hours Online Service, Provide Operation CD and Manual, Engineers available to service machinery overseas



Specification:



Paper Cup Size Range 1.5 to 12 oz (40 to 330 ml)
Production Speed 45 to 55 pcs/min
Paper Cup Top Diameter Min. 45 mm to Max. 104 mm
Paper Cup Bottom Diameter Min. 35 mm to Max. 75 mm
Paper Cup Height Min. 35 mm to Max. 110 mm
Raw Material 170 to 280 gsm, Single PE Coated Paper
General Power 4.8 kW
Electricity 380 V, 3 Phases or 220V, 1 Phase
Weight 1500 kg
Measurement 2.6 m × 1.22 m × 1.7 m



Features


1. The main part includes ultrasonic sealing system, index, speed reducer, motor, knurling set, bottom heating set and inverter.


2. Double side PE coated paper cup machine owns photoelectric detection, fault alarm and counting functions.


3. This paper cup making machinery features simple operation, stable performance, small occupying area, high efficiency and more profit. It has become the best choice for customers’ investment.





After service



1 The CD and service&support guide booklet will be sent with machine to guide the installation process works,adjust the whole machine,production,avoid or solve the problem which the buyer will face.



2. Test run of the machine & training:

We will adjust the machine well for one week before the delivery, ensure the machine has the perfect performance.



Advantage:



1. Quenching treatment for all the machinery,so its hardness is much more better than others by 20%.



2. Divided box: 125’ type, it has the long life than 100’



3. Base board is nearly double than others,guarantee the machinery working stable ,longer using.



4. Our equipment of the heating use aluminum,it has better thermal conductivity.



5. Double Belt and Three Tier Chain make machine running stable, long strong use life.





Packaging & Delivery



Prompt deliver at the very day.

Sophisticated and professional logistic agent.

Well-trained and disciplined packing team.

Packing pictures and tacking code are provided within 12 hours after receiving the payment.

After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.



Spare Parts For Paper Cup Machine:

Automatic Paper Cup Machine / Paper Cup Maker Machine Printed Cutting 50ML Coffee
