Economical Cardboard Paper Horn Forming Machine , Paper Horn Maker Equipment

China Economical Cardboard Paper Horn Forming Machine , Paper Horn Maker Equipment supplier
Economical Cardboard Paper Horn Forming Machine , Paper Horn Maker Equipment supplier Economical Cardboard Paper Horn Forming Machine , Paper Horn Maker Equipment supplier

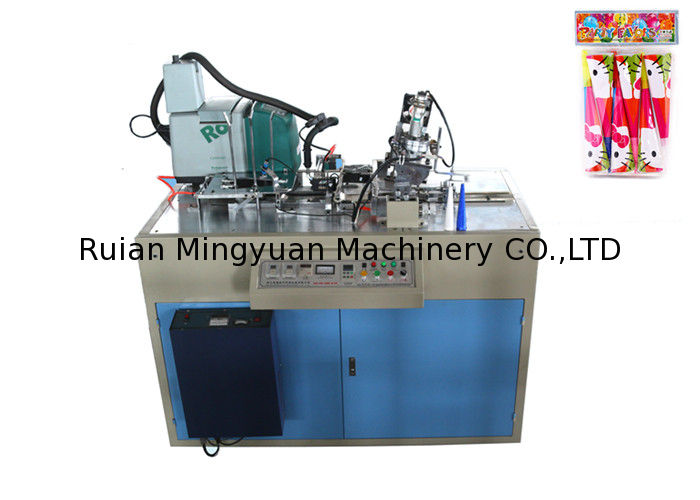

Large Image :  Economical Cardboard Paper Horn Forming Machine , Paper Horn Maker Equipment

Product Details:

Place of Origin: China
Brand Name: Mingyuan
Certification: CE
Model Number: PPH

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Standard Wooden Case, First need packing shrink film
Delivery Time: 25 Days after receive client deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 Sets Each Month
Contact Now
Detailed Product Description
Model No.: PPH Model Paper Horn Forming Machine Voltage: 220V / 380 V 50HZ OR Other Special Voltage
Power: 1.5 KW Speed: 45 – 65 Pcs/min
Warranty: 2 Years Processing Type: Paper Folding Machine

Economical Cardboard Paper Horn Forming Machine , Paper Horn Maker Equipment





Quick Details



Type Paper Horn Forming Machine
Applications Party Paper Horn, Paper Funnel
Raw Material PE Coated Paper,Cardboard Paper, Ivory Paper, Grey Cardboard
Paper Horn Size Accoring Client require
Production Capacity 50 - 60 Pcs per min
Packaging detail Plywood case is the usual exporting packing , also can packing according to the customer's requirements
Delivery Time 30 days after got Your down payment
Sealing Type Switzerland Made Robatech Brand Hot Melt Box



Description



PPH Model Paper Horn Forming Machine is our factory newest design Full Automatic Party Paper Horn / Funnel Forming Machine, That is Type machine With Switzerland Made Robatech Brand Hot Melt Box For the Raw Material Paper Sealing Which will be strong sealing not air leakage Problem. Inner of Machine with Change Speed Motor which will keep machine in stable running.



That is Design Party Horn Machine can forming the Paper horn for Party, festival etc. Now in market do party paper horn by Person Manual, our machine is first type machine for full automatc running paper horn Which will much save labor cost and progress high qulity paper horn( Save Paper Waste).



Specification



Model PPH Model Paper Horn Forming machine
Paper Horn Size Follow Client require
Raw Material PE Coated Paper, Grey Cardboard, Ivory Cardboard etc
Suitable Paper Weight 160~500 GSM
Rated Productivity 45 – 65 Pcs / min
Total Power 1.5 KW
Power Source 380V 50Hz, if your power is different, Please info us in advance
N.W 400Kg
Total Weight 450Kg
Package Size(L * W * H) 1650 * 1200 * 1800 mm
Packing Seaworthy Wooden Case

























































Advantage & Service Of Paper Horn Machine:



• Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.



• Paper Horn Forming Machine with quality guarantee for one year, life-long maintenance.



• Our machine can be monitored via Internet, solve customer requirements immediately.



• Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.



• Undertake various non-standard machinery, solve the customers' special requirements.



Production process
1 Paper roll be printed and cut in advance , becomes fan-wall-papers to sealing Paper horn
2 Hot Melt gluing in the paper fan before it do the sealing
3 Paper sender delivers the cup-fan-wall-papers to molds , sealing the Paper Horn

4 Paper Horn body finished forming, Collect in the box

5, Worker Put the plastic mouth stick with paper horn body



Applications



Economical Cardboard Paper Horn Forming Machine , Paper Horn Maker Equipment
