|Model No.:||JBZ-D Paper Bowl Forming Machine||Voltage:||220V / 380 V 50HZ|
|Power:||6 KW||Speed:||25 - 30 Pcs/min|
|Materia:||PE Coated Paper(can Be Sealed By Ultrasonic)||Automatic:||Full Automatic|

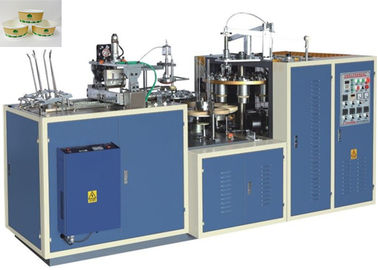

Ultrasonic Heater Sealing Paper Bowl Making Machine Full Auto Low Noise
Type: Paper Bowl Forming Machine
Applications: Paper Bowl, Paper Bucket etc
Raw Material: PE Coated Paper
Paper Bowl Size: 20 oz-50 oz (mold exchangeable) height up to 125 mm
Production Capacity: 35-40 Pcs per min
Packaging detail: Plywood case is the usual exporting packing , also can packing according to the customer's requirements
Delivery Time: 30 days after got Your down payment
Gear Box: Two Gear Boxes keep machine run stable and well
Paper Bowl Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It produces one-side-PE-film-coated paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, two step pre-heating, bowl-side-body sealing(heater), silicon-oil lubricating(for top curling), bottom punching, two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl discharging.
It is an ideal equipment of making soup paper bowls, noodle bowls, bigger paper cups and other large food cone-shaping containers etc.
|Paper Cup Size:||Around 64oz (mold exchangeable)|
|Raw Material:||One-side or two side PE(polyethylene)film coated/laminated paper;|
|Suitable paper weight:||180~450gsm|
|Rated Speed:||25~30 cups/minute|
|Power Source:||220V/380V 50Hz, (Better use 380V 3-phase)
if your power is different, Please info us in advance.
|Pack Size (L*W*H)||3200 x 1600 x 2100 mm|
|Working Air Source:||Air pressure:0.4Mpa; Air Out-put:0.6m³/minute
Need to buy Air Compressor
|Cup Side Welding:||Ultrasonic|
|Cup Bottom Heating:||Hot Air|
|Cup Bottom Knurling:||Heater Knurling (if use single PE coated paper)|
|Cool Device (recycle water) knurling, for double PE coated paper|
1. We use two Gear Box (one is 150 type and another one 80 type)
2. We using φ30 import steel shaft for the machine
3. We using 3 Cam to control the folding process.
4. We using two times paper feeding process.
5. We Using Robort Arm to get paper fan
The parts we used VS normal one
1) The Gear Box we use is 150 type, Normal one is 125 type.
150 type is much bigger and stronger than 125 type.
2) We use two Gear Box (one is 150 type and another one 80 type), normally one gear box is used in the paper bowl machine.
However one gear box is not stable as two. We use two, so it will not easily move after it is used for a long time.
3) We add one more oil storage for lubrication the paper fan, easy forming in the machine. Normally not have this design.
