Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine

China Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine supplier
Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine supplier Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine supplier

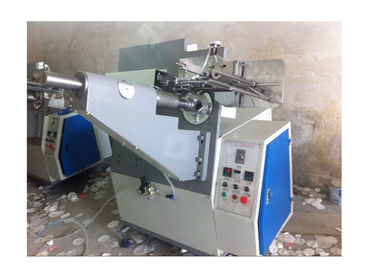

Large Image :  Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine

Product Details:

Place of Origin: China
Brand Name: Mingyuan
Certification: CE, SGS
Model Number: JDGT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Export Standard Wooden Case
Delivery Time: 25 Days after received the Deposit or LC
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability: 120 Sets each Year
Contact Now
Detailed Product Description
Model No.: JDGT Paper Cake Tray Machine Voltage: 380V/50HZ Or Other
Power: 3 KW Speed: 20-35 Times / Min, 10-20 Pcs / Time
Materia: Greaseproof / Ant-oil Paper Or Foil Paper Automatic: Full Automatic

Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine



Quick Details:



Type Paper Cake Tray Forming Machine
Applications Paper Cake Tray, Paper Cake Cup
Packaging Material Greaseproof, Ant-oil Paper or Foil Paper
Certificate CE
After service Engineers available to service machinery overseas
Packaging detail Plywood case is the usual exporting packing , also can packing according to the customer's requirements
Delivery Time 30 days after got Your down payment



Description:



Model JDGT Full Automatic Paper Cake Tray Forming Machine is a self-innovation equipment after assimilating the technology from Italy, it’s a first-class equipment at home and oversea with the advantages of simple structure, easy operation, fast production efficiency and reliable performance.



It produces paper cake tray after running the procedure of auto separate paper, pneumatic-controlled mechanical-hand clip paper, transfer to the mold, press paper to the mold and form shape with heater around the molds to produce different size paper tray and aluminum foil tray (around tray ,oval tray ,etc).



Specification:



HS. Code: 8441309000
Raw Paper Size : Φ50--Φ120 mm (open paper) (mold exchangeable);
Raw Material : Anti-oil paper(Greaseproof paper), aluminium foil paper or other;
Suitable paper weight : 15gsm--80 gsm;
Rated Productivity : 20--40 beat/minute, 15--35 pcs/beat;
Total Power : 2.5 KW (motor1.5kw, heating 1kw);
Power Source : 220V 50Hz or other required;
Total Weight : 500 Kg;
Package Size (L x W x H) : 1580 x 1480 x 1800 mm;
Working Air Source : Air Pressure: 0.6Mpa, Air Out-put : 0.3 m3/minute
Need to buy An air compressor.



Features of cake tray making machine:



1, Characterized in high accuracy, stable functioning, proper structure, energy saving and quiet.



2, Full-auto operations in all sections, e. G., in separating paper, delivering paper and shaping sections.



3, Auto control of heating, auto counting. On the main unit, speed is regulated by converting frequencies, which is quick and convenient.



4, Delivery velocity: 1200pcs/min



5, Produce round, boat-shaped and rectangle (with round corners) cake paper cups, where the diameter of the round spread is 50-140mm.



6, The power of the main unit is smaller than 1.5kW. The heating power is smaller than 0.8kW. The air pressure is 0.4-0.6mPa.



Detail of Paper Cake Tray Machine:





Universal Aluminium Foil Cake Tray Making Machine , Cake Box Making Machine
