quality Paper Cup Making Machine factory
Paper Cup Making Machine
Created with Pixso. > >
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min

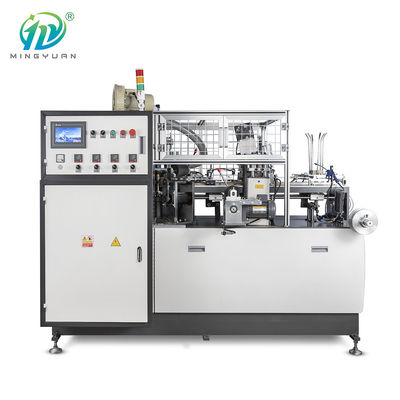

One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min

One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min

MOQ: 1
Price: USD 15000USD to 35000USD Each set
Packaging Details: Export Standard first packing with shrink film, Next Step packing by wooden case
Delivery Time: 45 days
× 大图
quality Paper Cup Making Machine factory
Paper Cup Making Machine
Created with Pixso. > >

One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min

  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
  • One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min
MOQ: 1
Price: USD 15000USD to 35000USD Each set
Packaging Details: Export Standard first packing with shrink film, Next Step packing by wooden case
Delivery Time: 45 days
× 大图
Detail Information
Model No:
JBZ-OCM12
Warranty Period:
1 Year Warranty Service.
Automation:
Automatic
Specification:
2000KG
Required Materials:
Single And Double Side PE Coated Paper
Overprint Logo:
With Logo Printing
Paper Specifications:
2 ~16 Oz
After Sales Service:
Parts Are Provided Free Of Charge Within 1 Years,
Product Name:
Paper Cup Forming Machine
Production Speed:
85PCS/Min
Place of Origin:
CHINA
Brand Name:
MINGYUAN
Certification:
CE
Model Number:
JBZ-OCM12
High Light:

One Side PE Paper Cup Machine

,

CE Certificate Paper Cup Forming Machine

,

Touch Screen Paper Cup Manufacturing Machine

Product Description
Model
Dubai double wall High speed automatic disposable paper coffee paper cup making machines
Paper Cup Size:
2 ~16 OZ (Mould exchangeable, Max Cup Height:136mm , Max Bottom width :72mm)
Rated Speed:
70-85pcs/min ( Speed affected by cup size, paper quality & thickness),
9OZ, 280GSM paper cup Stable running speed 80 pcs each min
Raw Material:
Only one-side PE coated paper
( Popular for Hot drink cups )
One or Two side PE coated Paper
(Popular for Hot and Cold drink Cups)
Suitable paper weight:
140~250gsm
140-350gsm
Power Source:
50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement.
Total Power:
6.5 KW
8.5 KW
Total Weight:
GW/NW: 1800KGS/1700KGS
Pack Size (L*W*H)
2100x970x1700mm(Machine Packing Size),
1250x860x1860MM(Counting Machine Packing Size)
Working Air Source:

No need provide Air
Air pressure:0.4Mpa;
Air Out-put:0.6m³/minute
Need to buy Air Compressor(by user)
Cup Side Welding:
Copper Heater
Ultrasonic Heater
Cup Bottom Heating:
Heater Knurling
1side PE paper by heater knurling;
2side PE paper by cool device (circle
water) knurling.
Cup Bottom Knurling:
Heater Knurling (if use single PE coated paper)

One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min 0One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min 1One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min 2One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min 3One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min 4One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min 5One Side PE Paper Cup Machine Paper Cup Forming Machine 85PCS/Min 6





Using famous brand motors, the quality of accessories is guaranteed
1 1 year warranty service.
2 Free replacement of parts within 1 year (free shipping).
3 Parts are provided free of charge within 2 years, but no free shipping.



Remote guidance, save your time
1 We provide Operation & Maintenance CD.
2 When there is a problem with the machine, please take a video of the problem and send it to us.
3 We will arrange professionals to help you deal with it through video or document tutorials.

Q1. Are you trading company or manufacturer?
A:we are one of the leading manufacturer of the paper cup machine, Plastic lid machine, paper plate machine etc paper product
machinery in China.
Q2. Do you have quality certificate?
A:we have got the ce certificate for our machine.
Q3. What's the delivery time?
A:Around 20~30 days, however, based on order.
Q4. where is your factory location?
A:we are locate in Henghe industrial zone, feiyun street, ruian city, zhejiang province, china. our nearest high way exit is
feiyun, our nearest train station is ruian station, our nearest airport is wenzhou airport.
Q5.How does your factory do regarding quality control?
A:Quality is priority. Our Factory always attach great importance to quality controlling from the very beginning to the very end:
1).Skilful workers care every details in handling the producing and packing processes;
2).Quality Control Department specially responsible for quality checking in each process.
Q6. What terms of payment you usually use?
A:T/T 30% deposit and 70% before machine loading, Western Union, L/C at sight.
