|Place of Origin:||China|
|Minimum Order Quantity:||negotiate|
|Packaging Details:||Export Standard Wooden Case|
|Delivery Time:||25 - 35 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||30 Sets Per Month|
|Name:||Paper Straw Machine||Feature:||High Speed|
|Working Air Pressure:||0.6Mpa||Measurement:||5600*1600*1750mm|
|Inner Diameter:||4-12mm||PLC:||Panasonic Made By Japan|
|Wall Thickness:||0.5-1mm||Winding Speed:||40-55 Meters/min|

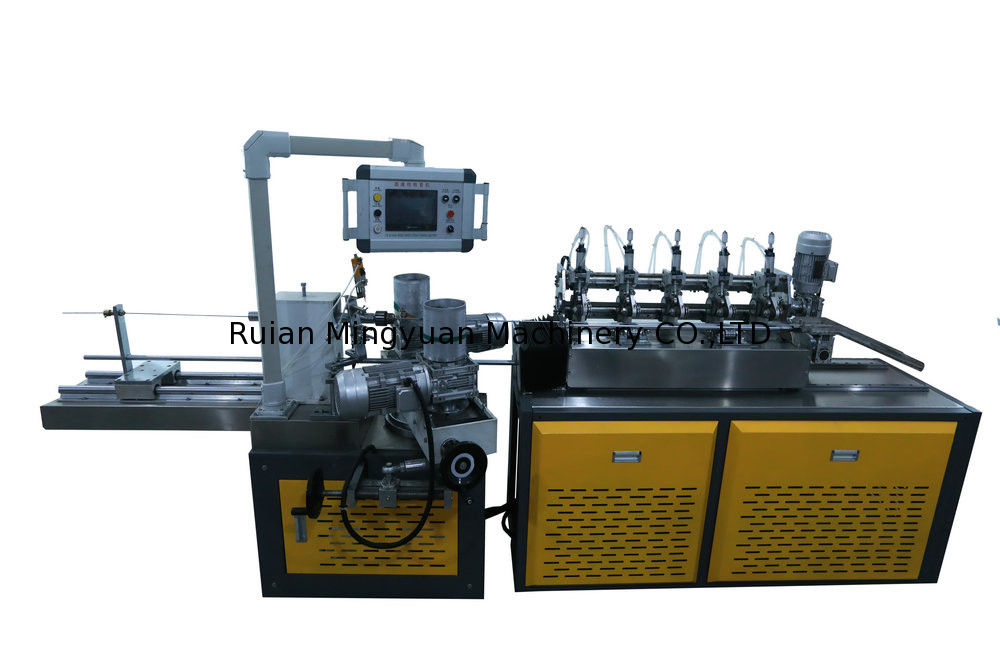

High Power Paper Straw Machine Numerical Multi Blades Cutting System
|Technical Parameter||Control System|
|Paper Layer||3 layer (in side two layer the paper use 120gsm paper, outside layer paper use 60gsm)||Motor||3.0KW|
|Inner Diameter||4-12mm||PLC||Panasonic Made By Japan|
|Wall Thickness||0.5-1mm||Operating Panel||Weinview Made by Taiwan|
|Winding Speed||40-55 meters/min||Inverter||3.7kw|
|Winding Nose||Two noses single belt||Execute Components||CHNT|
|Speed Control||By Inverter||Pneumatic Components||AirTAC Made by Taiwan|
|Cutting System||Numerical Multi-blades (standard 5 pcs)||Electric Components||Schneider Made by France|
|Synchronism tracking cutting system||Servo motor synchronism tracking||Bearing||Haerbin|
|Servo Motor||Panasonic 1.5kw Made by Japan|
|Gluing Way||Single/Double sides||Screw Rod||ABBA from Taiwan|
|Operator||1-2 person||Slider||ABBA from Taiwan|
|Working Air Pressure||0.6Mpa||Configuration|
380V or 220V /3Phase or 1 Phase /50Hz
|Paper Reel Stand||3 Layers Cross Type|
|Gluing Unit||3 Layers Spraying Type|
|Measurement & Weight||Belt||2 Pieces|
|Measurement||5600*1600*1750mm||Mandrel Shaft||2 Pieces|
|Operation space||About 7000*5000mm||Extra blades||5 Pieces|
|Weight||1000kgs||Useful Tool||1 Set|
Below Simple answer for Client question:
1, what type of material is used to make paper straw?
white kraft paper with Food grade: 120 GSM and 68 GSM ( pls buy it as 2:1 which means if buy 2 rolls 120GSM then 68 GSM buy 1 roll)
Paper Roll Bracket :The paper rolls can be easily installed in it and rotate flexibly.
2, What type of glue is used to make the paper straw? It need to be FDA approved? We want to know technical spec of the glue we need and some quantity to produce here in my factory.
Name: WATER BASED ADHESIVE
Must is by FDA approved ( Food Grade)
Content Of Non Volatile Matter: ≥46-50%
Ph: round 5.2
Remnants VAC: ≤0.09%
Particle Diameter: 0.9um
Dilution Stability: ≤3.4%
Minimum Film Forming Temperature: ≤0.9℃
Price: round 2200usd each ton
Different type glue price also will a little different.
New Mingyuan Machinery Design High Speed Paper Straw Machine Function Brief:
1. Stainless Steel Glue Unit
Choose gluing single side or double sides. The drinking straws are glued evenly and stuck firmly. ( Glue by WATER BASED ADHESIVE which FDA approved Food Grade)
2. Spiral winding unit , specialized operation system, Belt tension device (hand-wheel drive).
a. Send the paper to the winding unit .
b.Wind the paper shape to straw by winding system
3. Silicone oil lubrication system
Add silicone oil on the paper which for paper running smooth
4. Multi-blades cutting system and spiral rolling mechanism
multi-blades cutting system is controlled by encoder. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
5.Using servo motor control system which can track the cutting length with high precision and high efficiency.
6. Paper straw collecting system : collect the straws automatically and row them tidily in the container (By Client choose).
