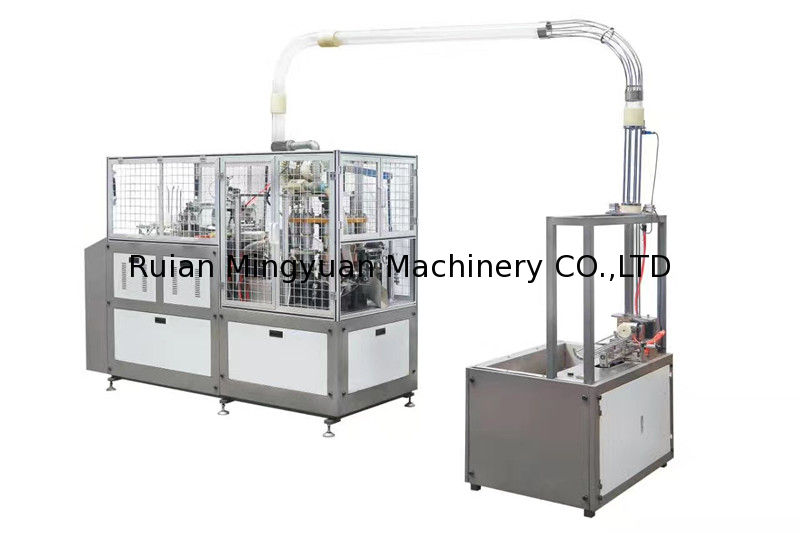

Double /Single Coated Paper Tea Cup paper cup machine/ ultrasonic heater paper cup machine
We provide client best quality, best price go with best service machine to support client business.
Our design paper cup machine capacity reach 85-90 cups each minute.The cup size can range from
3oz~16 oz (mould exchageable). And the lifetime is about 10years. It is used for making paper tea cup ,coffee cup , etc.Engineers available to service machinery overseas,Free training.
Description:
Double /Single Coated Paper Tea Cup Ultrasonic heater paper cup machine (speed 90pcs/min ) is an automatic machine with multiworking station,which has the function of photocell detection,failure alarm,counter and the advantages of humanism design,safer operation and easier maintenace.
Machine technical data:
|
Model
|
JBZ-OCG16 Paper Cup Forming Machine
|
|
Paper Cup Size
|
2oz-16oz (mold exchangeable)
|
|
Raw Material
|
One or Two side PE coated Paper / laminated paper
(Popular for Hot and Cold drink Cups)
|
|
Suitable paper weight
|
140-350gsm
|
|
Productivity
|
85-90pcs/ minute
|
|
Power Source
|
220V/380V 50Hz or other required
|
|
Total Power
|
12KW
|
|
Total Weight
|
2200KG
|
|
Package Size(L x W x H)
|
2250 x1350 x1800mm
|
|
Working Air Source
|
Air pressure:0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air Compressor
|
| Cup side welding |
Ultrasonic |
| Cup bottom heating |
Hot air (need air compressor supply air) |
| Cup bottom Knurling |
Heater Knurling (if use single PE coated paper) |
| Cool Device (circle water), for double PE coated paper |
|
.
Making Process:
It makes both double and single PE film coated paper cups after running a whole procedure of automatic paper cup fan feeding (Use two times paper fan feeding to keep the accurate position), Cup-wall-side Sealing by ultrasonic wave, robot hand for transfering cup body, silicone-oil lubricating (for top curling, Dimethyl silicone oil 201,Food Grade), bottom punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging, collecting.
Specifictions:
(1) Cups of different sizes are easy to produce by changing moulds.
(2). Every cam is hardened to ensure safe and stable operation.
(3)Oil self lubrication system which makes sure machine running high speed and keep long span life
(4) hot air system which made in Switzerland:Cup bottom heating by hot air .
(5).Bottom paper direct feeding design that increases the speed of the machine.
(6) We use open cam instead of gear box .
(7) Counting and collection system which can save more labors.
(8)PLC control system and touch screen for easy and visual operation of machine running.
Picutures of machine delivey
